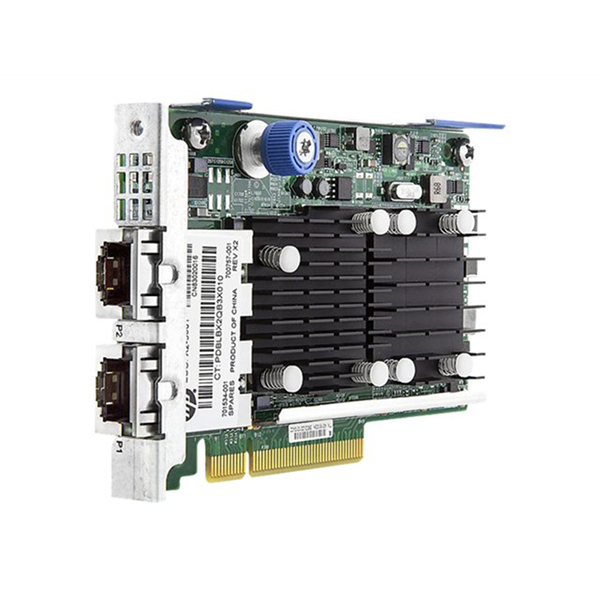

HPE FlexFabric 533FLR-T

HPE FlexFabric 533FLR-T - netwerkadapter - PCIe 2.0 x8 - 10Gb Ethernet x 2

Are you looking to reduce network congestion and improve cable management at the servers in your HPE ProLiant Gen8 environment? The HPE FlexFabric 10 Gb 2-port 533FLR-T adapter is a dual-port 10GBASE-T adapter, featuring the BCM57810S 10 Gb Ethernet solution from Broadcom in a PCIe 2.0 compliant form factor designed for HPE ProLiant Gen8 rack servers.

SPECIALS

HP ENTERPRISE

Leverancier	Categorie	Voorraad
Ingram Micro	Nieuw	0
TD SYNNEX	Nieuw	0

Fabrikantcode

700759-B21

Dit product kan op dit moment niet besteld worden

Mail ons

Algemeen
Type apparaat	Netwerkadapter
Ontworpen voor	HPE Apollo 4200 Gen9 for Google ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 ¦ HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, D...
Luchtvochtigheidsgraad bij gebruik	5 - 95% (niet-condenserend)
Max. gebruikstemperatuur	55 °C
Min. gebruikstemperatuur	0 °C
Service & Support	Beperkte garantie - 1 jaar
Benodigd besturingssysteem	SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1
Conformiteitsnormen	FCC klasse A-gecertificeerd, UL, VCCI Klasse A ITE, EN55024, EN55022 Klasse A, ICES-003 Klasse A, WEEE, RoHS, BSMI Class A, EN 61000-3-2:2006, EN 61000-3-3:2008
Interfaces	2 x 10GBase-T - RJ-45
RAM	256 MB
Processor	1 x Broadcom BCM57810S
Voorzieningen	Automatische onderhandeling, Jumbo Frames ondersteuning, PXE ondersteuning, LSO, RSS, TSO
Statuslampjes	Poortstatus, link/activiteit
Gegevensoverdrachtsnelheid	10 Gbps
Protocol voor gegevenskoppeling	Gigabit Ethernet, 10 Gigabit Ethernet
Bekabelingstype	Ethernet 10GBase-T
Connectiviteit	Met bekabeling
Poorten	10Gb Ethernet x 2
PCI specificatierevisie	PCIe 2.0
Interface (Bus) Type	PCI Express 2.0 x8
Model	Insteekkaart
Diversen
Conformiteitsnormen	FCC klasse A-gecertificeerd, UL, VCCI Klasse A ITE, EN55024, EN55022 Klasse A, ICES-003 Klasse A, WEEE, RoHS, BSMI Class A, EN 61000-3-2:2006, EN 61000-3-3:2008
Garantie van de fabrikant
Service & Support	Beperkte garantie - 1 jaar
Informatie over Compatibiliteit
Ontworpen voor	HPE Apollo 4200 Gen9 for Google ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 ¦ HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, D...
Netwerkgebruik
Conformiteitsnormen	IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x
Voorzieningen	Automatische onderhandeling, Jumbo Frames ondersteuning, PXE ondersteuning, LSO, RSS, TSO
Statuslampjes	Poortstatus, link/activiteit
Gegevensoverdrachtsnelheid	10 Gbps
Protocol voor gegevenskoppeling	Gigabit Ethernet, 10 Gigabit Ethernet
Bekabelingstype	Ethernet 10GBase-T
Connectiviteit	Met bekabeling
Poorten	10Gb Ethernet x 2
Omgevingsparameters
Luchtvochtigheidsgraad bij gebruik	5 - 95% (niet-condenserend)
Max. gebruikstemperatuur	55 °C
Min. gebruikstemperatuur	0 °C
Processor / Geheugen
RAM	256 MB
Processor	1 x Broadcom BCM57810S
Software / Systeemvereisten
Benodigd besturingssysteem	SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1
Uitbreiding / Aansluiting
Interfaces	2 x 10GBase-T - RJ-45
Informatie over Compatibiliteit
Ontworpen voor	HPE Apollo 4200 Gen9 for Google ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 ¦ HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL388p Gen8 Base, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL450 Gen10 ¦ HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node ¦ HPE StoreEasy 3850 Gateway Single Node
