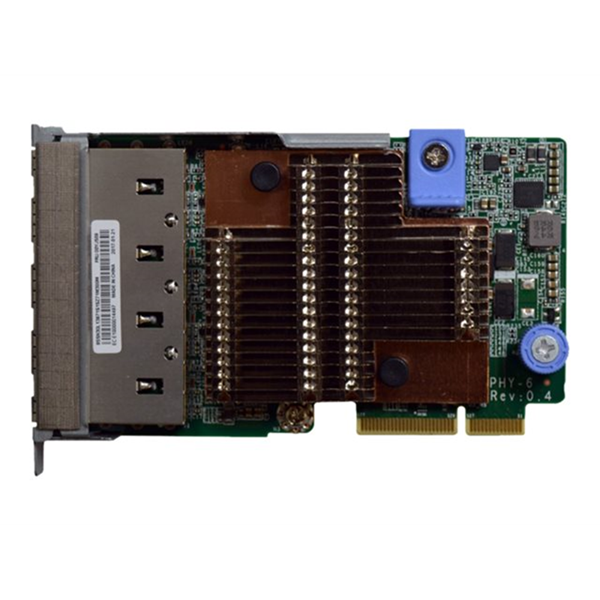

Lenovo ThinkSystem - netwerkadapter - LAN-on-motherboard (LOM) - 10Gb Ethernet x 4

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE/10 GbE networking solution for ThinkSystem customers.

LENOVO

Leverancier	Categorie	Voorraad
Copaco	Nieuw	0
TD SYNNEX	Nieuw	0

Fabrikantcode

7ZT7A00549

Dit product kan op dit moment niet besteld worden

Mail ons

Algemeen
Type apparaat	Netwerkadapter
Model	Insteekkaart
Interface (Bus) Type	LAN-on-motherboard (LOM)
Poorten	10Gb Ethernet x 4
Connectiviteit	Met bekabeling
Bekabelingstype	Ethernet 10GBase-T
Protocol voor gegevenskoppeling	Gigabit Ethernet, 10 Gigabit Ethernet
Gegevensoverdrachtsnelheid	10 Gbps
Capaciteit	Virtuele functies: 128
Protocol voor beheer op afstand	RMON
Voorzieningen	Datatransport, VLAN-ondersteuning, WOL, IPv6-ondersteuning, QoS, RDMA ondersteuning, VMDq, PXE ondersteuning, LSO, RSS, UEFI-ondersteuning, SR-IOV, LACP, Energy Efficient Ethernet, CoS, gemerkte VLAN, MSI-X, TCP/IP checksum offload, UDP/IP checksum offload, VEPA, NC-SI, VXLAN, NVGRE, VEB, TPH, Advanced Packet Filtering, Intel VT, ondersteuning Jumbo Frames (max. 9728 bytes)
Conformiteitsnormen	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg
Processor	1 x Intel X557-AT4
Interfaces	4 x 1Gb Ethernet/10Gb Ethernet - RJ-45
Software meegeleverd	Intel PROSet
Benodigd besturingssysteem	Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, VMware ESXi 6.0 update 3
Service & Support	Beperkte garantie - 1 jaar
Ontworpen voor	Lenovo ThinkAgile HX2320 Appliance 7X83 ¦ Lenovo ThinkAgile HX3321 Certified Node 7Y89 ¦ Lenovo ThinkAgile HX3520-G Appliance 7X84 ¦ Lenovo ThinkAgile HX7520 Appliance 7X84 ¦ Lenovo ThinkAgile HX7820 Appliance 7Y95, 7Z08 ¦ Lenovo ThinkAgile HX7821 Certified Node 7Y96, 7Z09 ¦ Lenovo ThinkAgile VX 1U Certified Node 7Y93 ¦ Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 ¦ Lenovo ThinkAgile VX3320 Appliance 7Y93 ¦ Lenovo ThinkAgile VX3520-G Appliance 7Y94 ¦ Lenovo ThinkAgile VX5520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR950
Diversen
Conformiteitsnormen	ICES-003 Klasse A, RoHS, UL 60950-1 Second Edition, FCC Part 15 A, KCC Class A, VCCI Class A, RCM, RRA Class A
Garantie van de fabrikant
Service & Support	Beperkte garantie - 1 jaar
Informatie over Compatibiliteit
Ontworpen voor	Lenovo ThinkAgile HX2320 Appliance 7X83 ¦ Lenovo ThinkAgile HX3321 Certified Node 7Y89 ¦ Lenovo ThinkAgile HX3520-G Appliance 7X84 ¦ Lenovo ThinkAgile HX7520 Appliance 7X84 ¦ Lenovo ThinkAgile HX7820 Appliance 7Y95, 7Z08 ¦ Lenovo ThinkAgile HX7821 Certified Node 7Y96, 7Z09 ¦ Lenovo ThinkAgile VX 1U Certified Node 7Y93 ¦ Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 ¦ Lenovo ThinkAgile VX3320 Appliance 7Y93 ¦ Lenovo ThinkAgile VX3520-G Appliance 7Y94 ¦ Lenovo ThinkAgile VX5520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR950
Netwerkgebruik
Poorten	10Gb Ethernet x 4
Connectiviteit	Met bekabeling
Bekabelingstype	Ethernet 10GBase-T
Protocol voor gegevenskoppeling	Gigabit Ethernet, 10 Gigabit Ethernet
Gegevensoverdrachtsnelheid	10 Gbps
Capaciteit	Virtuele functies: 128
Protocol voor beheer op afstand	RMON
Voorzieningen	Datatransport, VLAN-ondersteuning, WOL, IPv6-ondersteuning, QoS, RDMA ondersteuning, VMDq, PXE ondersteuning, LSO, RSS, UEFI-ondersteuning, SR-IOV, LACP, Energy Efficient Ethernet, CoS, gemerkte VLAN, MSI-X, TCP/IP checksum offload, UDP/IP checksum offload, VEPA, NC-SI, VXLAN, NVGRE, VEB, TPH, Advanced Packet Filtering, Intel VT, ondersteuning Jumbo Frames (max. 9728 bytes)
Conformiteitsnormen	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg
Processor / Geheugen
Processor	1 x Intel X557-AT4
Software / Systeemvereisten
Benodigd besturingssysteem	Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, VMware ESXi 6.0 update 3
Software meegeleverd	Intel PROSet
Uitbreiding / Aansluiting
Interfaces	4 x 1Gb Ethernet/10Gb Ethernet - RJ-45
