Shuttle XPC nano NC40U7

Shuttle XPC nano NC40U7

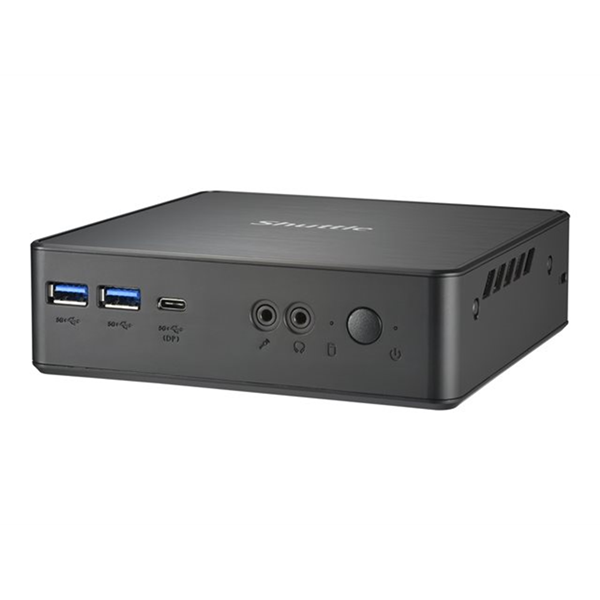

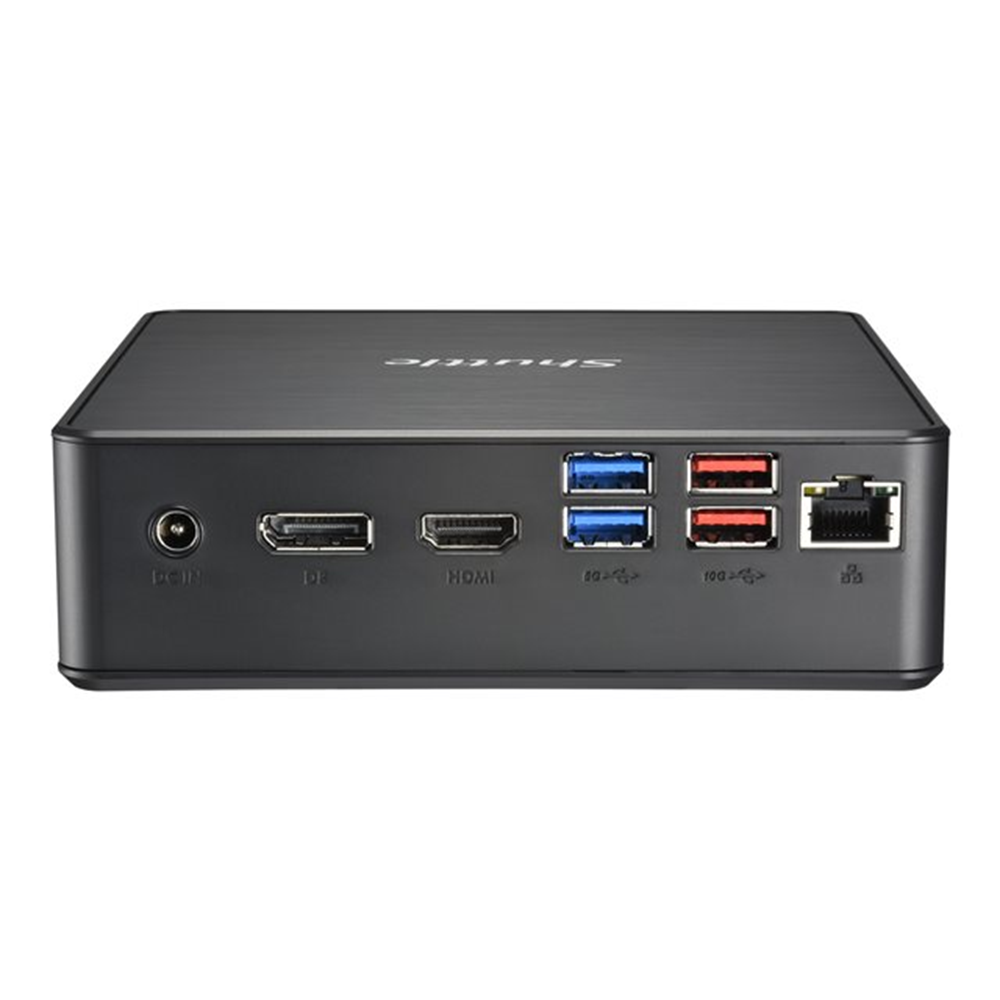

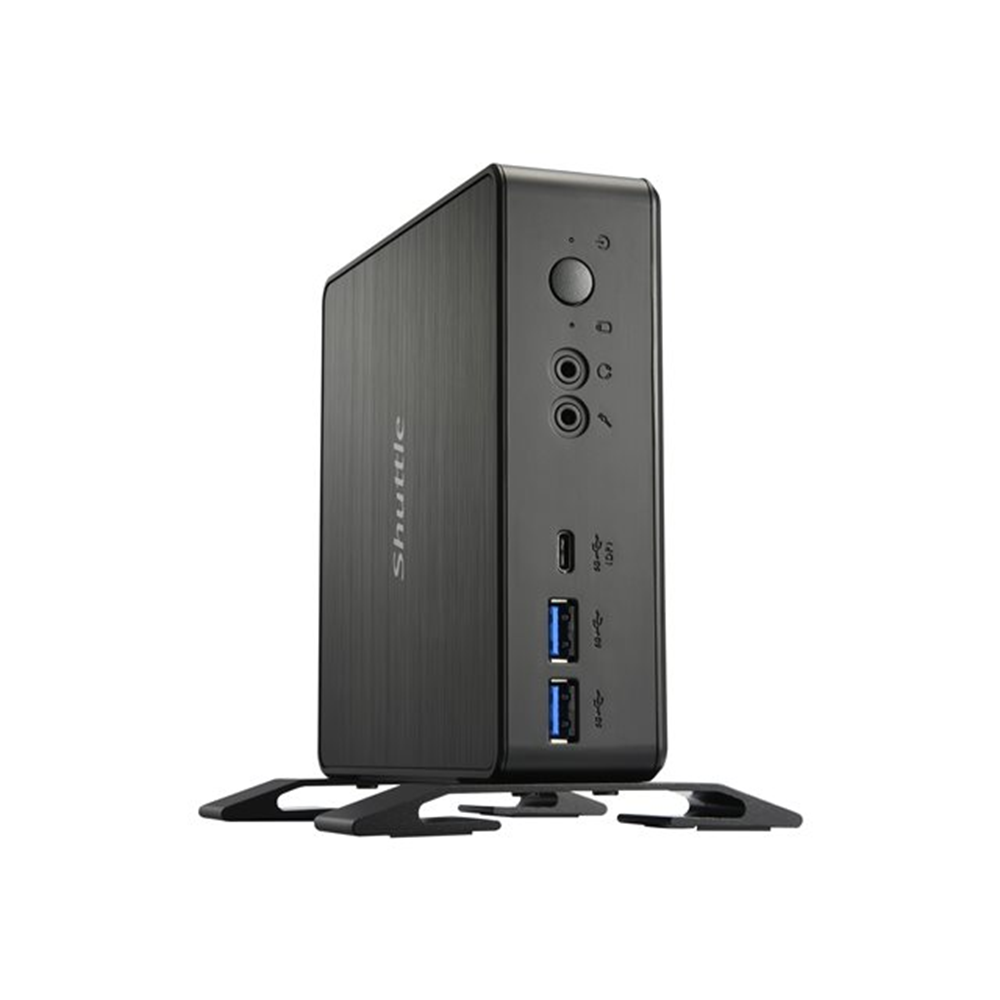

Shuttle XPC nano NC40U7 - mini-PC Core i7 1255U 1.7 GHz - 0 GB - geen HDD
The NC40U series comes with powerful and efficient 12th generation Intel Core processor, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60 Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
SPECIALS
SHUTTLE
Leverancier Categorie Voorraad
Nieuw 0
Fabrikantcode
NC40U7

Dit product kan op dit moment niet besteld worden

Mail ons

Afmetingen & gewicht
Breedte 14.2 cm
Diepte 14.2 cm
Hoogte 4.2 cm
Gewicht 400 g
Afmetingen & gewicht (transport)
Verzendgewicht 1.2 kg
Algemeen
CPU Intel Core i7 (12de Gen) 1255U
Kloksnelheid 1.7 GHz
Max Turbo Speed 4.7 GHz
Aantal kernen 10-core
Aantal CPU 1
Max aantal CPU 1
Hoofdfuncties processor Intel Smart Cache
Geïnstalleerde grootte 12 MB
Cache per processor 12 MB
Grootte geïnstalleerd 0 GB (geïnstalleerd) / 64 GB (max.)
Technologie DDR4 SDRAM - niet-ECC
Model SO DIMM 260-PIN
Slots 2 (Totaal) / 2 (leeg)
Voorzieningen Niet-gebufferd, dubbelkanaals geheugenarchitectuur
Interfacetype controller SATA 6Gb/s
Aantal kanalen 1
Type beeldscherm Geen
Grafische processor Intel UHD Graphics 620
Video-interfaces HDMI, DisplayPort
Conformiteitsnormen High Definition Audio
Ethernetcontroller Intel I219
Protocol voor gegevenskoppeling Ethernet, Gigabit Ethernet, Fast Ethernet
Bays 1 (totaal) / 1 (vrij) x intern 2.5" x 1/8H
Interfaces 6 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.1 Gen 2 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x audiolijnuitgang/koptelefoon ¦ USB 3.1 Gen 2 ¦ 1 x microfoon
Meegeleverde accessoires Horizontale voetjes, VESA-montagekit
Diefstal-/inbraakbeveiliging Veiligheidsslotgleuf (kabelslot wordt apart verkocht)
Type veiligheidsslot Kensington-beveiligingssleuf
VESA-montageverbinding 100 x 100 mm, 75 x 75 mm
Type apparaat Netspanningsadapter
Vereiste netspanning 100-240 Volt wisselstroom V (50/60 Hz)
Geleverde energie 65 Watt
Inclusief OS Geen werkend systeem
Breedte 14.2 cm
Diepte 14.2 cm
Hoogte 4.2 cm
Gewicht 400 g
Verzendgewicht 1.2 kg
Type Geen optisch station
Productvormfactor Mini-PC
Ingebouwde beveiliging Firmware Trusted Platform Module (TPM 2.0) Security Chip
Kleur Zwart
Audio Output
Conformiteitsnormen High Definition Audio
Beeldscherm
Type beeldscherm Geen
Besturingssysteem / Software
Inclusief OS Geen werkend systeem
Cachegeheugen
Geïnstalleerde grootte 12 MB
Cache per processor 12 MB
Controller voor opslag
Type 1 x SATA
Interfacetype controller SATA 6Gb/s
Aantal kanalen 1
Diversen
Meegeleverde accessoires Horizontale voetjes, VESA-montagekit
Diefstal-/inbraakbeveiliging Veiligheidsslotgleuf (kabelslot wordt apart verkocht)
Type veiligheidsslot Kensington-beveiligingssleuf
VESA-montageverbinding 100 x 100 mm, 75 x 75 mm
Graphics controller
Grafische processor Intel UHD Graphics 620
Video-interfaces HDMI, DisplayPort
Netwerkgebruik
Ethernetcontroller Intel I219
Protocol voor gegevenskoppeling Ethernet, Gigabit Ethernet, Fast Ethernet
Optische opslag
Type Geen optisch station
Processor / chipset
CPU Intel Core i7 (12de Gen) 1255U
Aantal kernen 10-core
Kloksnelheid 1.7 GHz
Max Turbo Speed 4.7 GHz
Aantal CPU 1
Max aantal CPU 1
Hoofdfuncties processor Intel Smart Cache
RAM
Technologie DDR4 SDRAM - niet-ECC
Grootte geïnstalleerd 0 GB (geïnstalleerd) / 64 GB (max.)
Model SO DIMM 260-PIN
Slots 2 (Totaal) / 2 (leeg)
Voorzieningen Niet-gebufferd, dubbelkanaals geheugenarchitectuur
Stroom
Type apparaat Netspanningsadapter
Vereiste netspanning 100-240 Volt wisselstroom V (50/60 Hz)
Geleverde energie 65 Watt
Uitbreiding / Aansluiting
Bays 1 (totaal) / 1 (vrij) x intern 2.5" x 1/8H
Slots 2 (totaal) / 2 (vrij) x M.2 Card - 2280
Interfaces 6 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.1 Gen 2 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x audiolijnuitgang/koptelefoon ¦ USB 3.1 Gen 2 ¦ 1 x microfoon
Vaste schijf
Type Geen HDD
Algemeen
Type PC barebone
